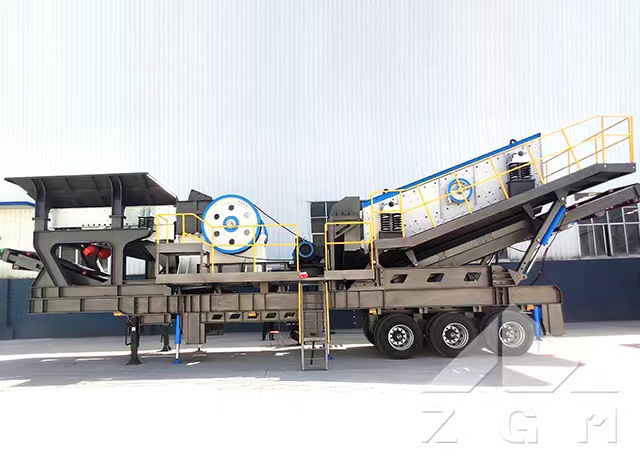

ZY-1 series coarse crushing mobile station adopt advanced heavy-ship design, the whole structure is stronger, the operation is more stable.
Limestone
Basalt
Granite
Pebbles
Construction
Power
Dry Mix
Chemica
Building
Mining
ZY-1 series coarse crushing mobile station adopt advanced heavy-ship design, the whole structure is stronger, the operation is more stable. The main equipment can choose J6S series European jaw crusher, PE series jaw crusher, P6S series European hydraulic impact crusher, etc. The crushing ratio is large, which is the first choice of primary crushing.
The high quality and thickened steel frame can protect the crushing station running smoothly, and prolong the service life.
Adopt compact ship design for frame chassis, transportation length is shortened effectively, the flexible parking function is designed makes equipment quick arrival site.
Each leg can rise independently, which can effectively to avoid the offset of support ground uneven and uneven intensity.
Steering traction shaft, small turning radius, flexible, easy to road transport and into work site, provides a more flexible working space.
Model | Feeder Model | Crusher Model | Belts | Iron Remover | Frame | Capacity (t/h) | Hydraulic System |
ZY-1 J100 | GZD3896 | J6S100 | 2 | Configurable | Double axles | 100-200 | Hydraulic lifting |

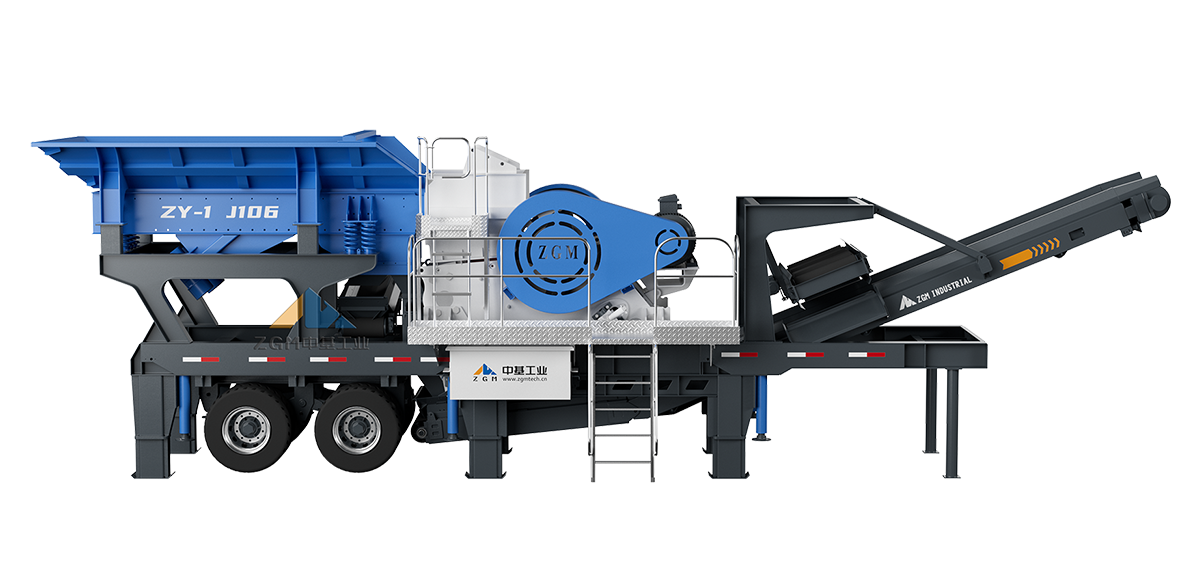

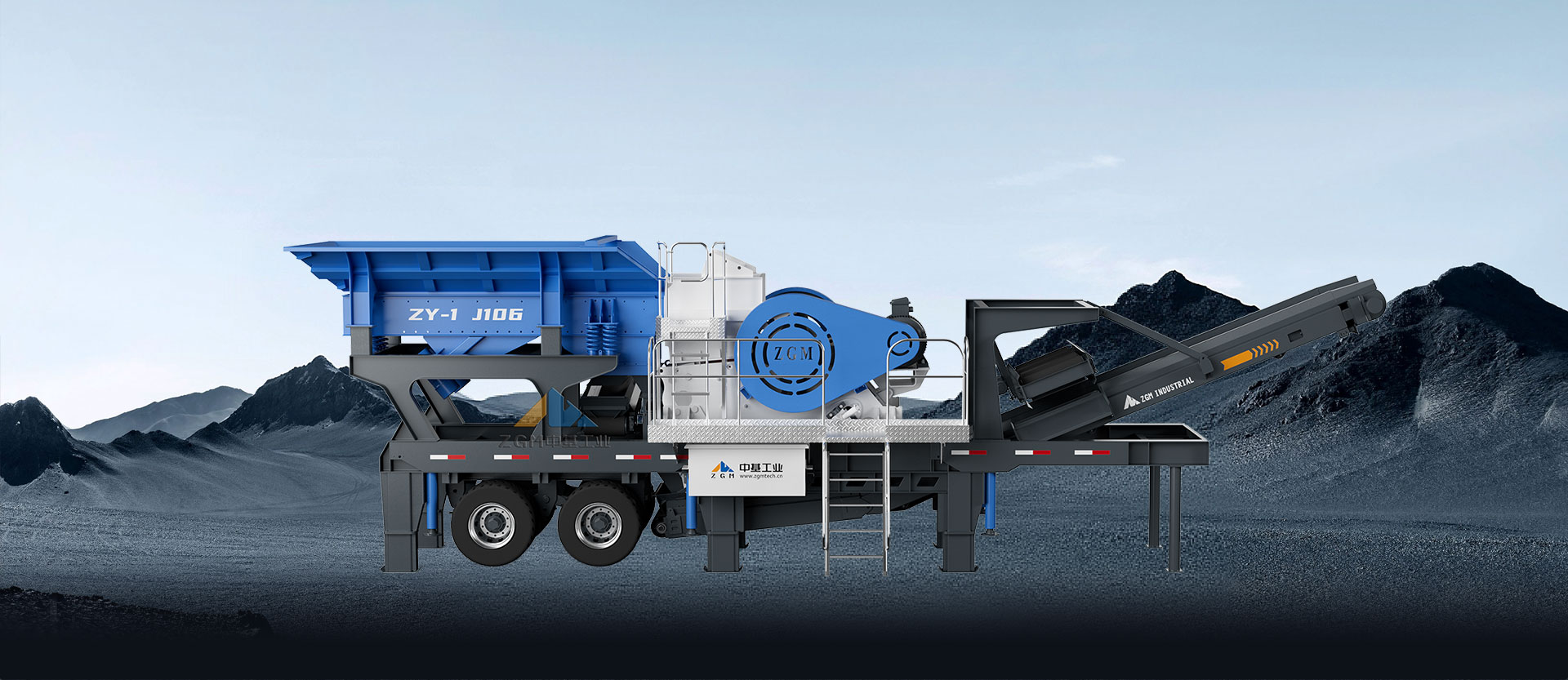

ZY-1 J106 | GZD4211 | J6S106 | 2 | Configurable | Triaxia | 180-240 | Hydraulic lifting |
ZY-1 E90 | GZD3896 | PE600x900 | 2 | Configurable | Double axles | 100-150 | Hydraulic lifting |
ZY-1 E106 | GZD4211 | PE750x1060 | 2 | Configurable | Triaxia | 150-200 | Hydraulic lifting |
ZY-1 P1214 | GZD3896 | P6S1214 | 2 | Configurable | Double axles | 100-200 | Hydraulic lifting |
ZY-1 P1317 | GZD4211 | P6S1317 | 2 | Configurable | Triaxia | 150-300 | Hydraulic lifting |
